LabMate 10

General-purpose compact high-voltage supply for laboratory use, available in separate positive- and negative-output models.

Choose a configuration

Positive, Local Control

Positive, Local Control

  • Voltage: 0 to +10 kV
  • Current: 2 mA

$696

→

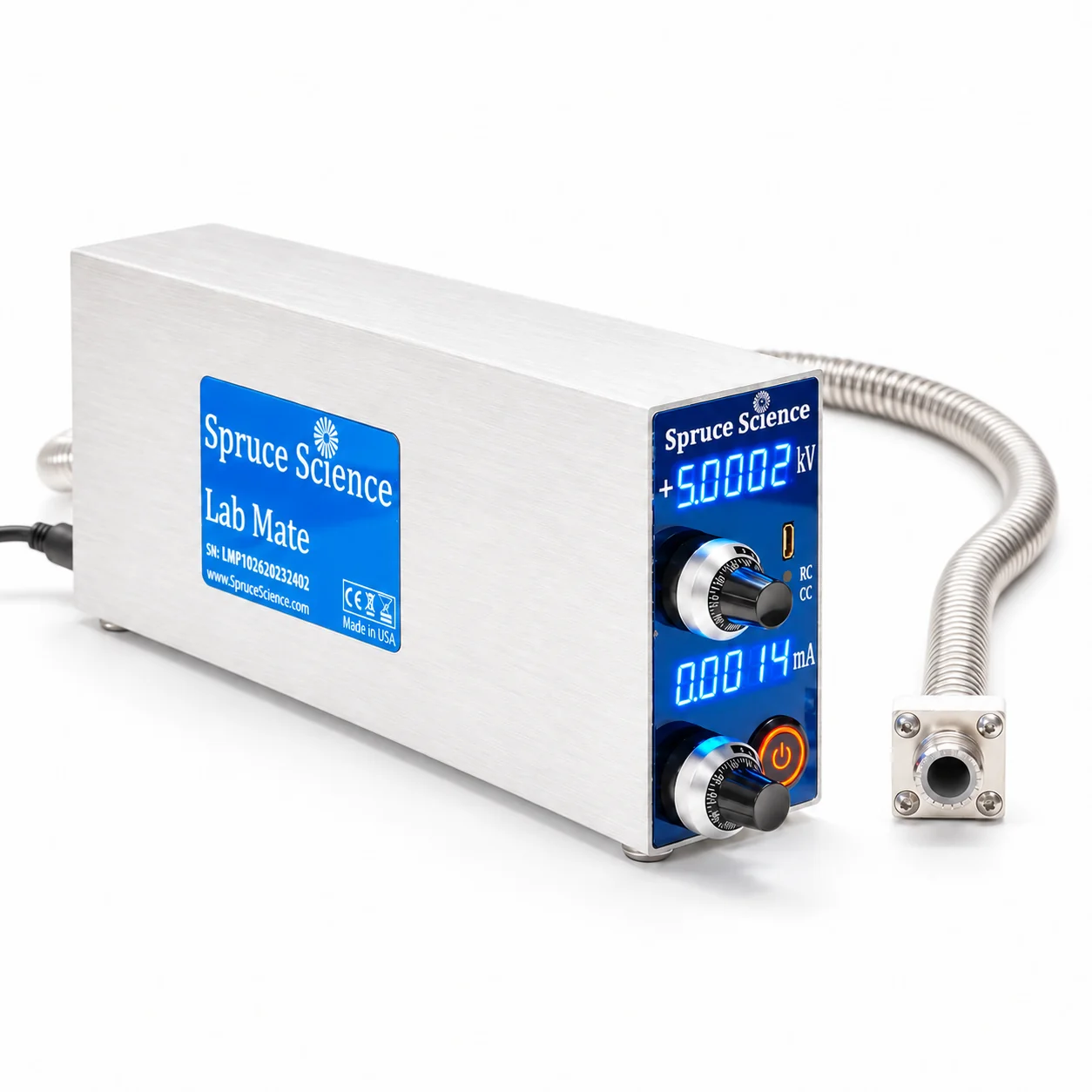

Positive, Analog Remote

Positive, Analog Remote

  • Voltage: 0 to +10 kV
  • Current: 2 mA

$996

→

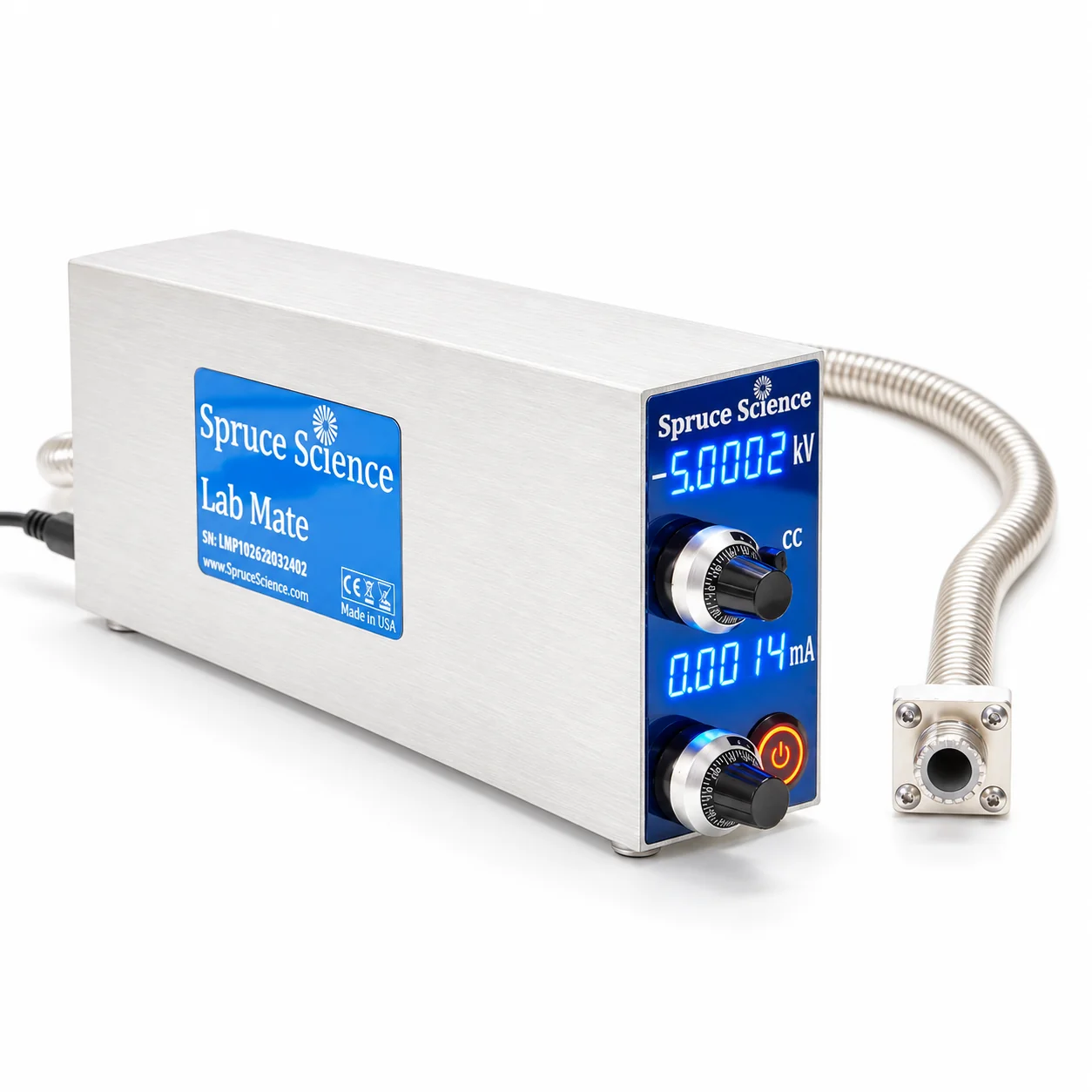

Negative, Local Control

Negative, Local Control

  • Voltage: 0 to -10 kV
  • Current: 2 mA

$696

→
Negative, Analog Remote

Negative, Analog Remote

  • Voltage: 0 to -10 kV
  • Current: 2 mA

$996

→

Connector assembly

Every LabMate 10 includes Spruce Science's coaxial high-voltage connector system. A central high-voltage conductor is surrounded by insulation and a grounded outer shield, which helps reduce capacitive coupling and electrical noise while adding a grounded barrier around the high-voltage path. The supply-side assembly is fixed to the instrument and protected by a robust stainless-steel connector shell. The included two-foot user-side cable connects through a quick-disconnect coupling. A 47 kOhm series resistor in the user-side assembly helps limit surge current during unexpected arcing events. The connector and cable assembly are rated up to 30 kV.

Included accessories vary by control configuration — see each option above for details.

Safety notice: This is a fixed-polarity supply. Positive and negative LabMate supplies are separate products and are not field-switchable — confirm the polarity required by your application before ordering.
