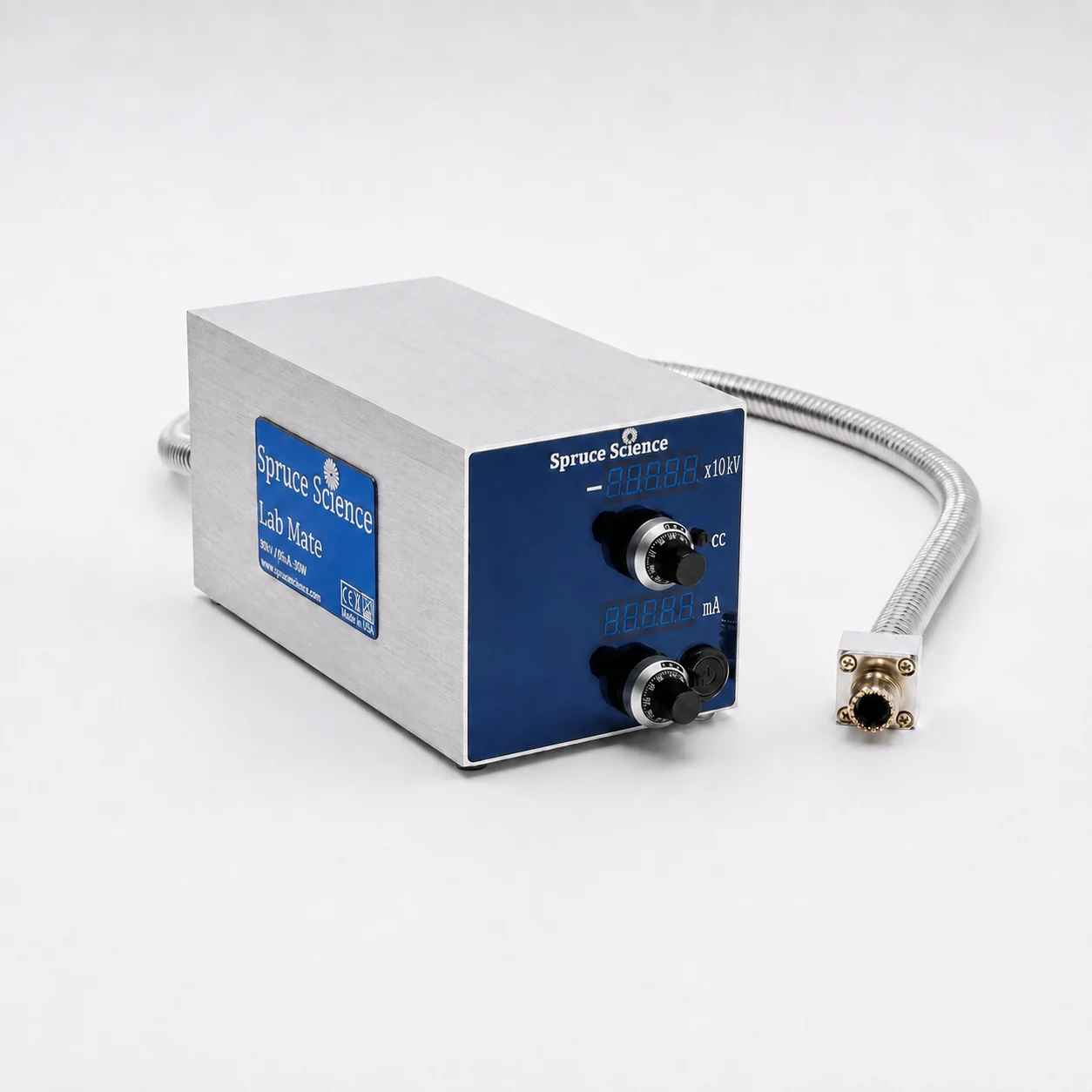

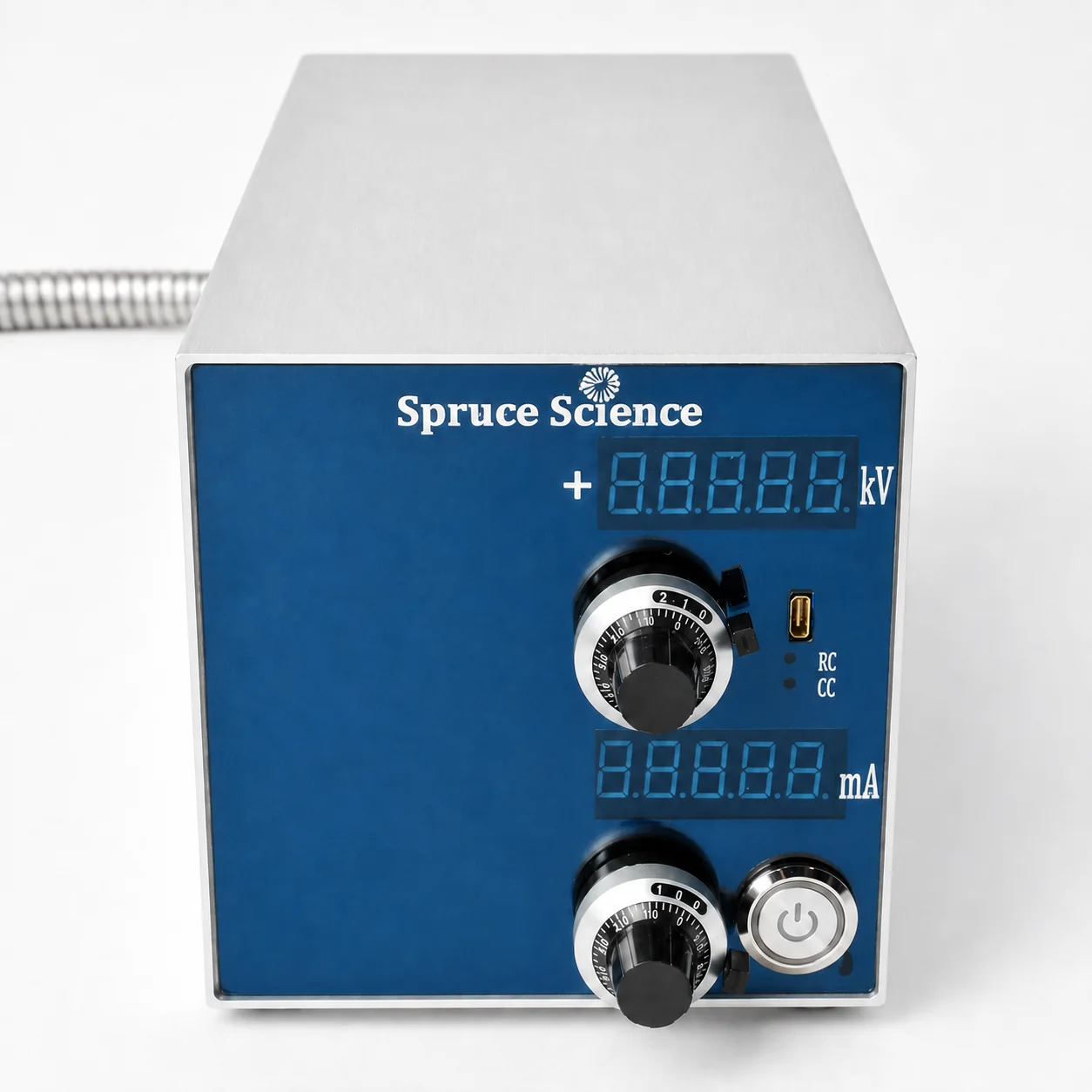

LabMate 30
General-purpose high-voltage supply extending the LabMate range to 30 kV, available in separate positive- and negative-output models.
Choose a configuration
Connector assembly
Every LabMate 30 includes Spruce Science's coaxial high-voltage connector system. A central high-voltage conductor is surrounded by insulation and a grounded outer shield, which helps reduce capacitive coupling and electrical noise while adding a grounded barrier around the high-voltage path. The supply-side assembly is fixed to the instrument and protected by a robust stainless-steel connector shell. The included two-foot user-side cable connects through a quick-disconnect coupling. A 47 kOhm series resistor in the user-side assembly helps limit surge current during unexpected arcing events. The connector and cable assembly are rated up to 30 kV.
Included accessories vary by control configuration — see each option above for details.
Safety notice: This is a fixed-polarity supply. Positive and negative LabMate supplies are separate products and are not field-switchable — confirm the polarity required by your application before ordering.
